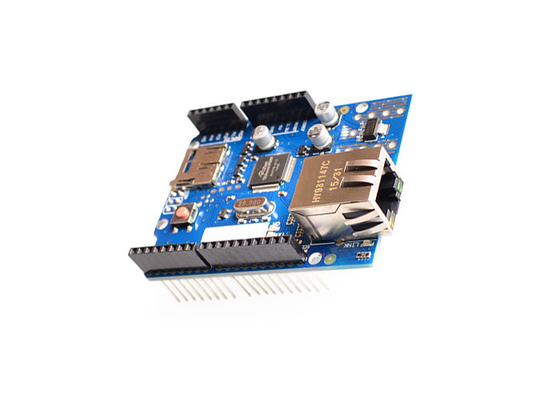

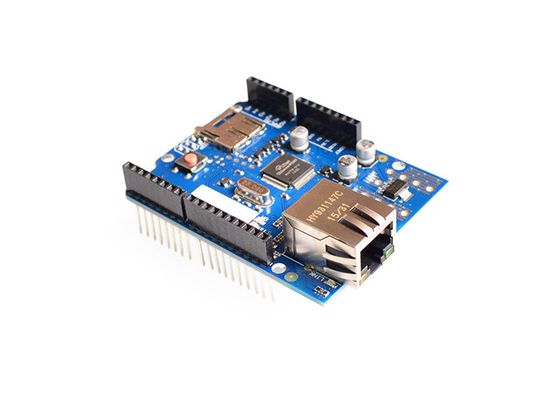

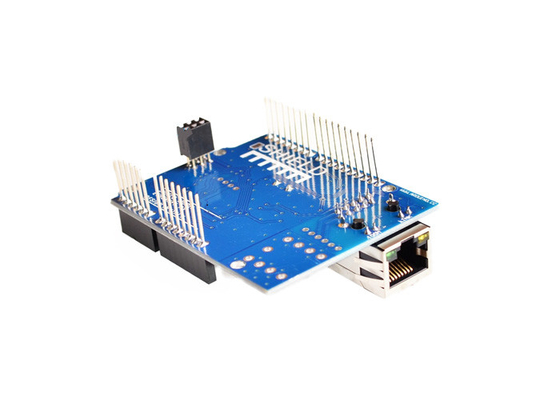

Arduino Ethernet Shield W5100 R3 Network Lan Expansion Board

Arduino Ethernet Shield W5100 R3 Network Lan Expansion Board

Description:Ethernet extension board can make the controller to connect to the Internet.It is a built-in W5100 TCP/IP the extension of the microprocessor board.This board by long stitch row mother board (wire wrap the header) connection.Use the IDE Ethernet in the library application can easily use this extension plate connected to the network.This extension plate support four socket connection at the same time.And have been added to the R3 version of the extended board is composed of four additional port version 1.0 standard output port: 2 is located in the edge of the ARFF 2 is located in the edge of the RESET.RESET at the edge of the two ports, one is IOREF, used to adapt extension plate to the motherboard.Another empty port reserved for future expansion.This version of the new micro - SD card slot, has a network storage function.In addition, it and the Duemilanove, Mega series also fully compatible.It also has a separate PoE (power over Ethernet) module.The module can be welded to the motherboard to transmit electricity through twisted-pair cable.It is up to the standard of IEEE802.3 af and PoE module of existing and compatible.Technical specifications Compatible with Mega2560 / rev3 standard output port
With functions of active voltage converter of micro - SD card connectorPoEReset the controller Compatible with the MEGA board

Specification:

FAQ

1. What is the terms of payment?


L/C,D/A,D/P,T/T,Western Union,MoneyGram

2. What is the delivery time?


Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

3. If the products can't work after receiving it,what should I do?


We will replace new items for you at once, and respect your final decision for wrong goods.

4. If the products don't meet my demand after I received it,can I return it?


Yes,no problem.You can return back to us, we will refund your full payment.

5. what is the warranty?


1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
