| Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | Oky Newstar |
| Certification: | RoHS |
| Model Number: | OKY3369 |
| Minimum Order Quantity: | 10pieces/pieces |
|---|---|
| Price: | $1.94-2.21/Pieces |
| Packaging Details: | 1 pcs ESP8266 Remote Serial Port WIFI Transceiver Wireless Module Esp-13 AP+STA |
| Delivery Time: | 3-5 workdays after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per day |
| Model: | ESP8266-13 | Chipset: | ESP8266 |
|---|---|---|---|
| Frequency Range: | ISM 2.4GHz | Warrnty: | 24 Months |
| Material: | PCB | ||
| Highlight: | arduino temperature sensor,shields for arduino |
||
Description:
| The shield is designed based on esp8266 by Espressif Systems, |
| pin-compatible with UNO/Mega2560 DevBorad. |

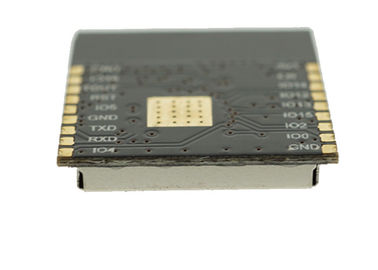

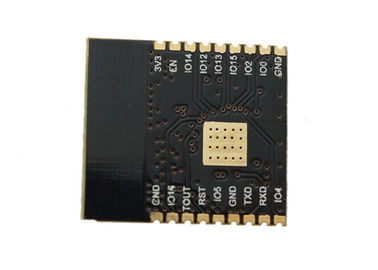

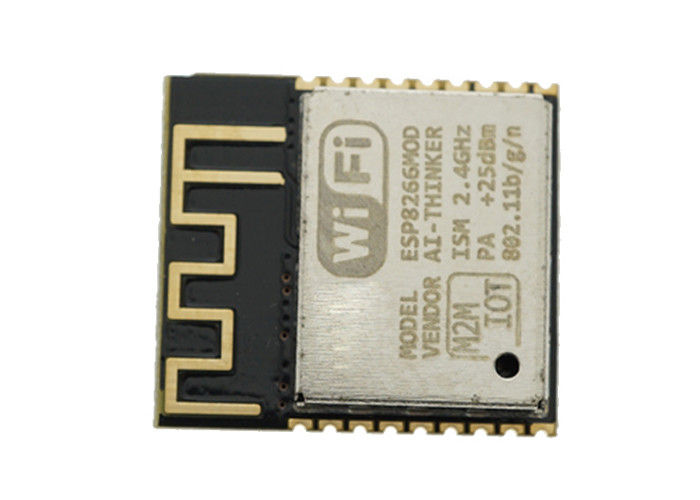

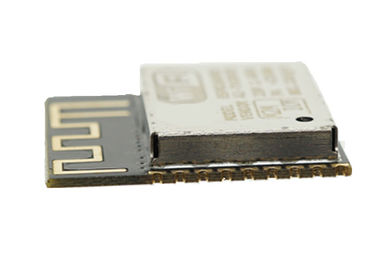

| WiFi module is industrial-grade chips ESP8266 |
| which is ESP-13 with metal shield, strong anti-interference ability; |
| Shield is pin-compatible with Uno, Mega2560 and other control board. |
| A voltage converter chip is used to deal with 3.3V (Esp8266) and 5V (); |
| Dual DIP switches is used for serial ports so that |
| this module shield can be used alone as an Uno expansion board, |
| and also be used as ESP8266 expansion board; |
| Serial data is transported to WiFi device transparently, and vice versa. |
| program does not need any configuration; |
| WebServer is developed to configure WiFi parameters and serial port parameters; |
| The module shield can be used as an independent ESP8266 development board. |
| for instance, downloading the official AT commands firmware, NodeMCU open source firmware can be used; |
| The module shield also can be used as stand-alone expansion board for Uno |
Package:
Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)
Competitive Advantage:
1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once and then we make the judgement for the issue.
3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.
4.what is the warranty?
1-3 months to replace new items for free, 1-2 years repairing free according to different products.
5.Do you accept OEM design?
Yes,we do.We can design according to your requirement.
6.Are you a manufacturer?
Yes,we are.
