Product Name: | Mega 2560 UNO R3 Motor Drive Motor Shield Expansion Board L293D | Color: | Blue |
---|---|---|---|
Size: | 69mm*53mm | Weight: | 38g |
Highlight: | diy arduino board,arduino development board |

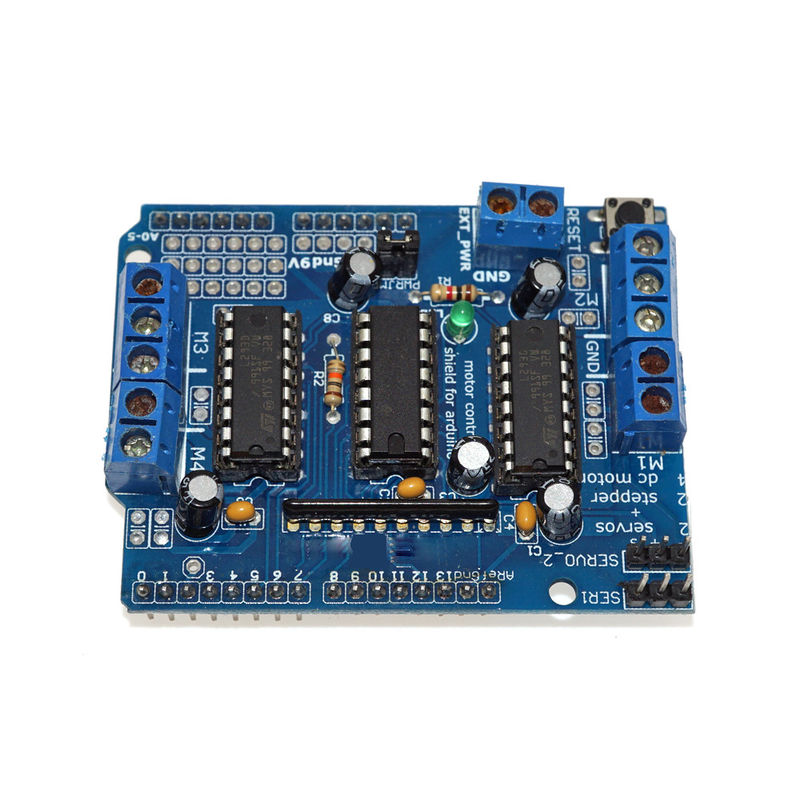

Mega 2560 UNO R3 Motor Drive Motor Shield Expansion Board L293D
Description:
Here we have a L293D monolithic integrated, high voltage, high current, 4-channel driver.
You can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel.
The L293D chip is also what’s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
1.2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter!
2.Can drive 4 DC motors or 2 stepper motors or 2 Servo
3.Up to 4 bi-directional DC motors with individual 8-bit speed selection
4.Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
5.4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
6.Pull down resistors keep motors disabled during power-up
7.reset button
8.2 external terminal power interface, for seperate logic/motor supplies
9.Tested compatible for Mega, Diecimila & Duemilanove
Specification:
Chip | L293D |
Model number | OKY2151 |
external power | 0V - 25V |
Pin No. | 16 pins |
Motors | 5V to 36V DC |
Tested compatible | Duemilanove, Mega & Uno |
Length | 3.4 |
Width | 2.7 |
Height | 1.2 |
Size | 69mm*53mm |
Board Weight | 38g |
